Kawasaki 34 MW / 60 Hz Gas Turbine Cogeneration Power Plant (2020)
Top condition, high-tech 34 MWe Kawasaki gas trubine plant with chilled water production as a cogeneration feature. Plant was manufactured in 2020 and operation was stopped in 2024 after approx 20000 operating hours. Currently installed and preserved.
SKU: 11002026
- Manufacturer
- Kawasaki Heavy Industries, Japan
- Manufacturer's type
- L30A Gas Turbine CHP Plant
- Made in year
- 2020
- Capacity
- 34MWe/60Hz/11kV
- Application
- Base load power production + chilled water
- Fuel
- Natural gas (and kerosine for starting up)
- Running hours since new
- With NG 19596 and with kerosine 439
- Cooling capacity
- 2462kW at 7C
- Electrical efficiency
- 41.3%
- Total LHV efficiency
- 85.5%
- Current condition
- Installed and preserved
Kawasaki Gas Turbine Cogeneration Power Plant 34 MW / 60 Hz

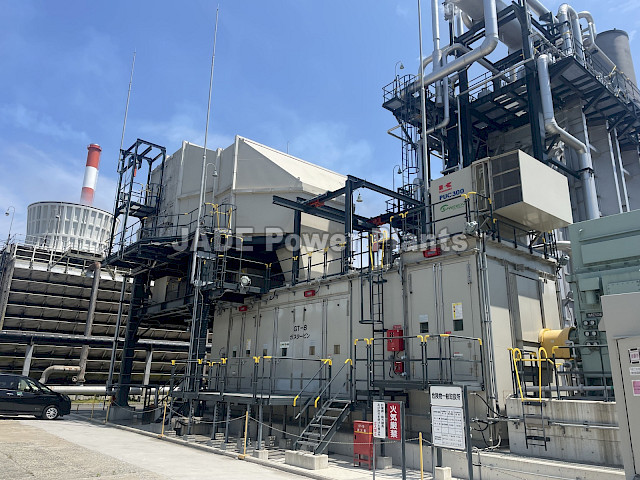

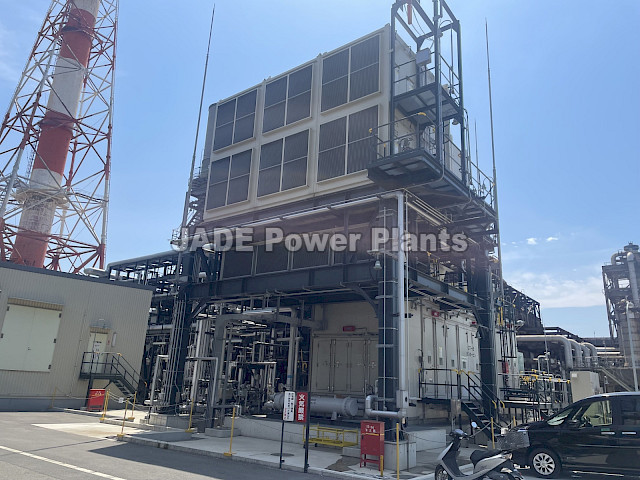

This modern 34 MW Kawasaki L30A Gas Turbine Power Plant is a highly efficient and environmentally friendly cogeneration facility designed for industrial and utility-scale power generation. Manufactured in 2020 and maintained in excellent condition, the plant combines reliable electrical generation with heat recovery, achieving total fuel utilization efficiency of up to 85.5%. Operation was stopped on Stopped in March 2024 in good condition and the plant was preserved with KHI’s maintenance instructions.

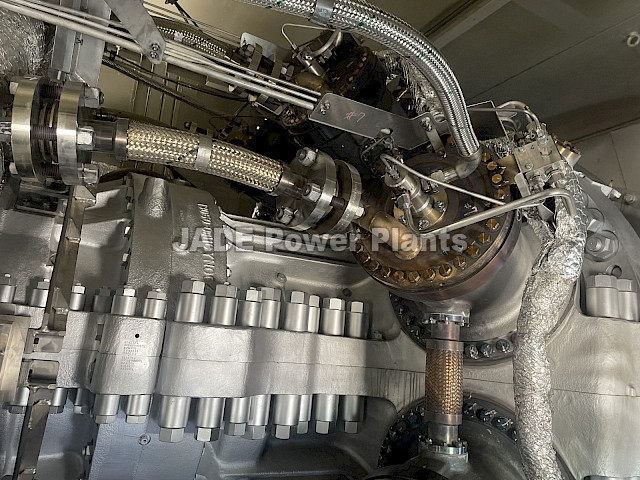

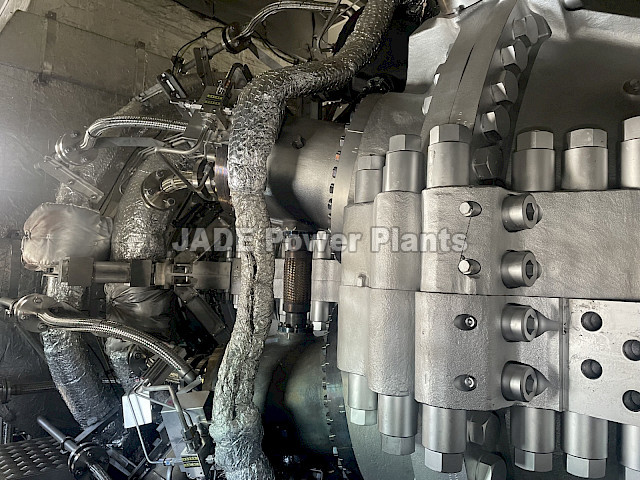

The plant is powered by a Kawasaki L30A two-shaft industrial gas turbine featuring a 14-stage axial-flow compressor, advanced Dry Low Emission (DLE) combustion system and high-efficiency turbine technology. The unit delivers approximately 34 MW electrical output with thermal efficiency exceeding 41%, while maintaining exceptionally low NOx emissions of approximately 15 ppm without water or steam injection. Major overhauls are typically required only every six years.

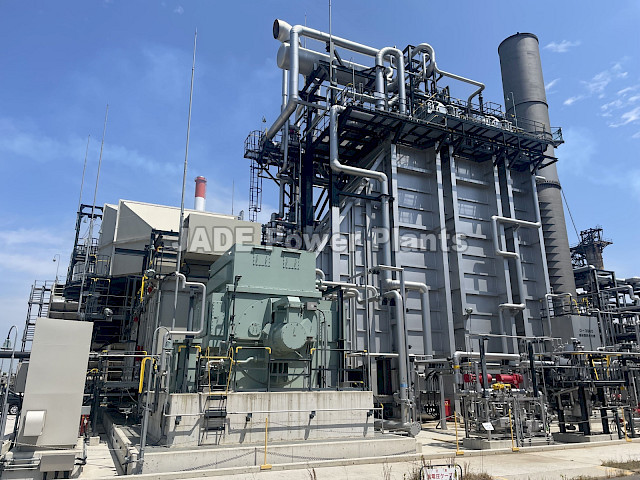

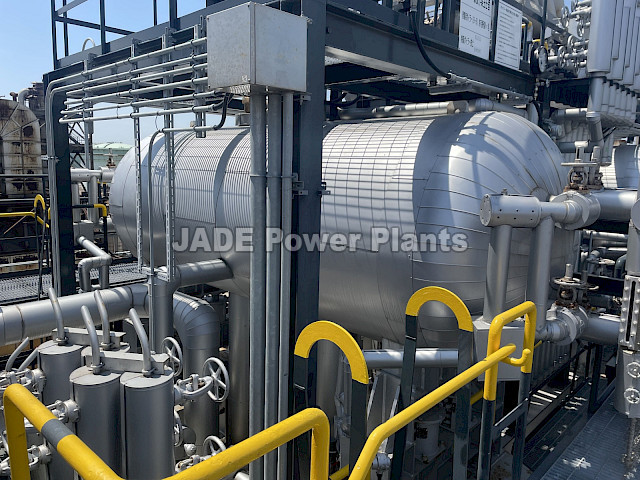

Power generation is provided through a Meiden synchronous generator rated at 37,945 kVA, producing electricity at 11 kV and 60 Hz. The cogeneration configuration also includes a Kawasaki absorption chiller utilizing recovered thermal energy to provide approximately 2.46 MW of cooling capacity, significantly improving overall plant efficiency and operating economics.
Designed for reliability and simplified maintenance, the Kawasaki L30A features modular construction and proven Japanese engineering. This little-used 2020 power plant represents an excellent opportunity to acquire a modern, high-efficiency, low-emission power generation asset at a fraction of replacement cost.
More information available for serious buyers
