2024 - Diesel Generator 4 x CAT 3516B 2000 kVA / 50 Hz – New in 2024 Never Installed

Diesel Generator 4 x CAT 3516B 2000 kVA / 50 Hz – 2024 Never Installed

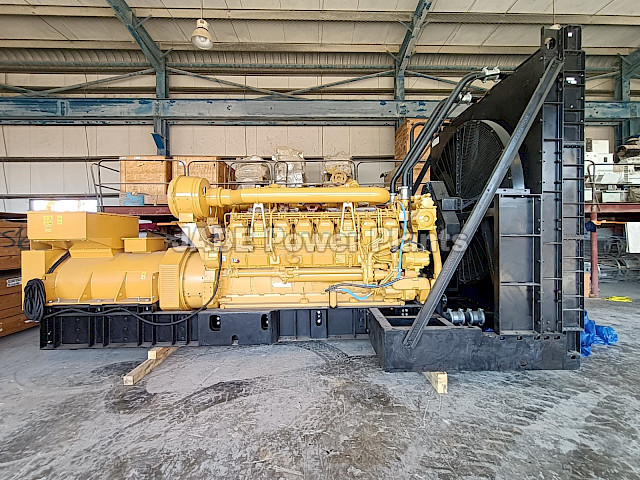

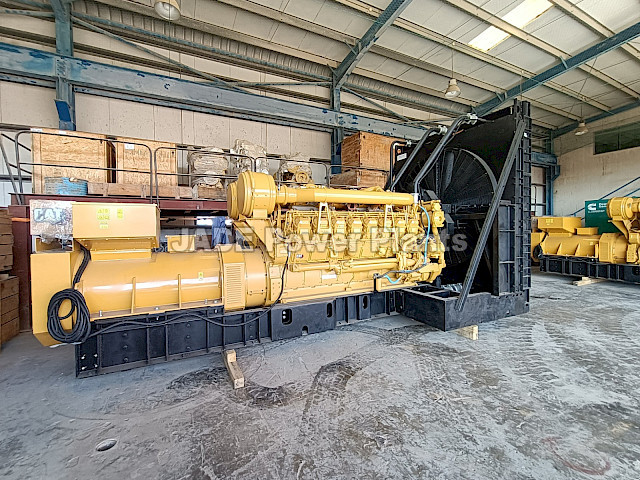

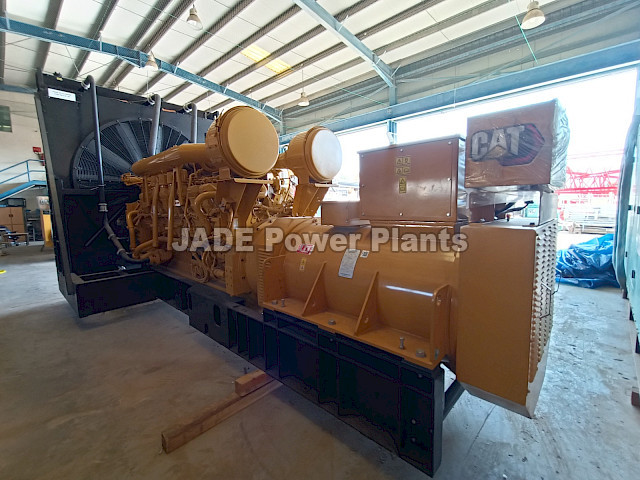

Never installed, surplus CAT 3516B skid mounted diesel generating sets. Engine is coupled with 2000 kVA / 415 V / 50 Hz Leroy Sommer DSG 74L1 brushless synchronous alternator with a flexible coupling, and both mounted on a rigid base frame. These units are designed for standby and prime duty. Main engine control panel EMCP 4.2, HV-switch,  24V electric starting system and a muffler

Technical data

Engine type                        CAT 3516B – 16-cylinder, 1500 rpm diesel engine

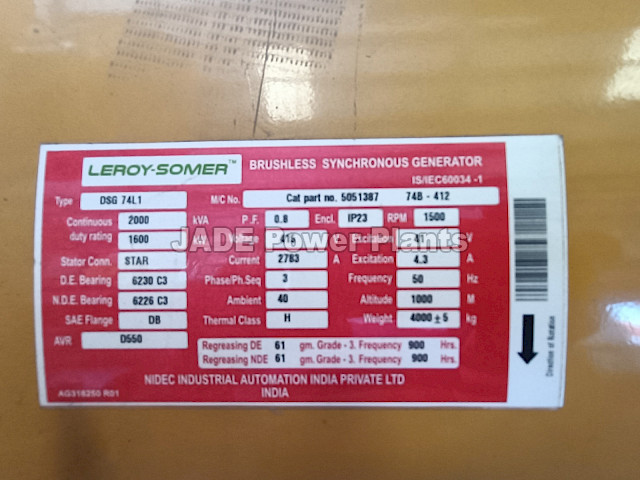

Alternator                           Leroy Sommer 2000 kVA / 415V / 50Hz

Power factor                      0.8

Manufacturing year           2024

Operating hours                Zero, never installed

Number of units available  4 pcs

Prime rating                     2000 kVA (1600 kW)

Stand by rating                2240 kVA (1800 kW)

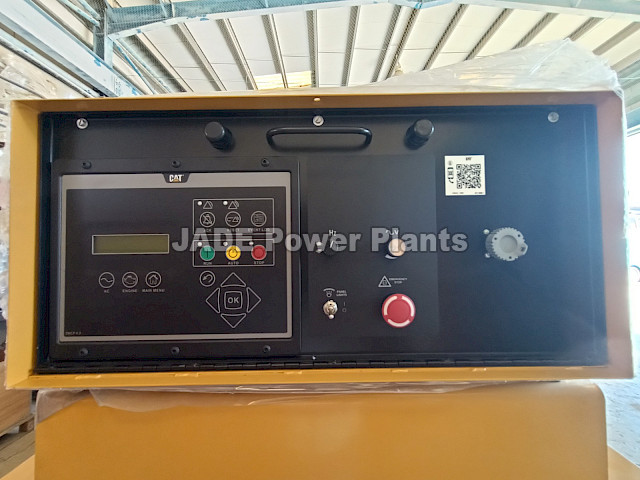

Control system                EMCP 4.2
